Product Description

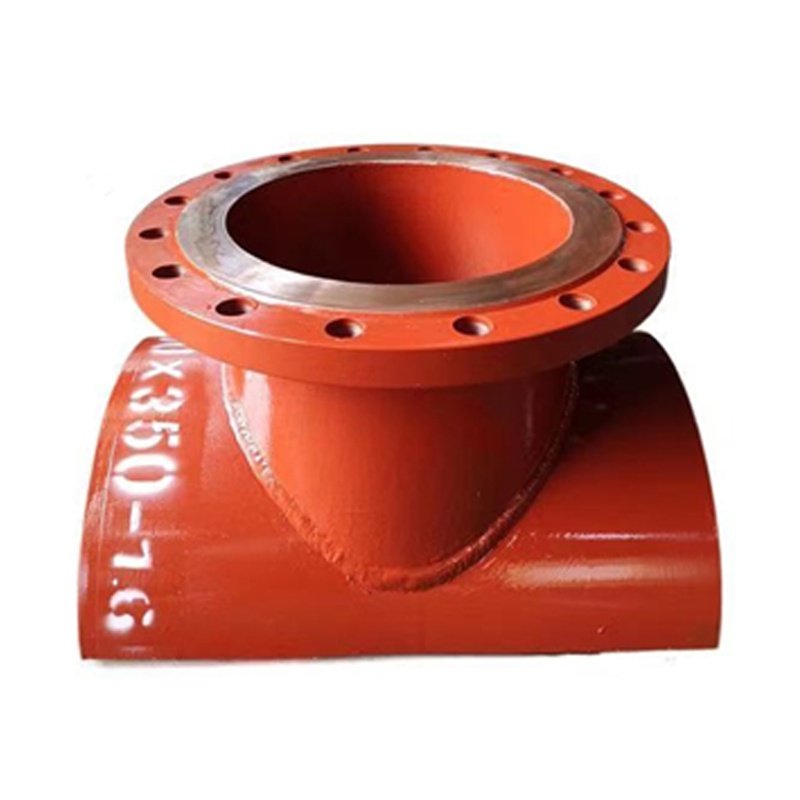

Full Encirlement Hot Tapping Fittings(also named Split Tee) are designed to be welded to pipeline where on-charge intervention is needed. Hot Tapping Equipment is connected to these fittings and through them perform hot tap operation for branch connection.

Design Data

Design Code:	ASME B31.3/4/8
Design Pressure:	ANSI #150, #300, #600, #900
Design Temperature:	-20ºC to 80ºC
Design Factor:	0.4, 0.5, 0.6, 0.72
Flange :	Slip-on Flange RF Serrated

Material

Plate:	A860 All Grades – P355 NL1, P460 NL1 as per EN 10.028-3
Flanges:	ASTM A105
	Ø ≤ 24” ASME B16.5
	Ø > 24” ASME B16.47
Bolts & Nuts:	ASTM A193 B7/194 2H
Pipe:	API 5L Gr.B, ASTM A106 Gr.B, E355 as per EN 10.028-3

Key Features :

* No LockSure Flange

* No LockSure Plug

* Extruded / Fabricated Sleeves
Size：

* From Ø2” to Ø56”

Type :

* Extruded Fittings
* Welded Fittings
* Mechanical Fittings

NDT TEST (as per ASME sec.IX):

* 100% RX on butt welds

* 100% US on the other

Hot Tapping Fitting Dimensions

Hot Tapping Fitting 150#
Size		L		H		Weight
Inch	DN	Inches	mm	Inches	mm	Lbs	kg
4	100	10.75	273	6.5	165	45	20
6	150	14.02	356	7.95	202	80	36
8	200	16.22	412	9.45	240	120	54
10	250	20	508	11.02	280	190	86
12	300	21.65	550	12.68	322	300	136
14	350	25.98	660	13.66	347	410	186
16	400	30	762	15.55	395	560	254
18	450	32.98	838	16.54	420	670	304
20	500	35.98	914	17.6	447	970	440
22	550	40	1016	18.78	477	940	426
24	600	42.99	1092	20.16	512	1605	728
26	650	47.01	1194	20.87	530	1340	608
28	700	49.02	1245	22.24	565	1465	665
30	750	56.02	1423	24.09	612	2896	1303
34	850	60.67	1541	26.65	677	2319	1044
36	900	65	1651	27.95	710	2781	1251

Hot Tapping Fitting 300#
Size		L		H		Weight
Inch	DN	Inches	mm	Inches	mm	Lbs	kg
4	100	10.75	273	6.38	162	55	25
6	150	14.02	356	8.15	207	75	34
8	200	16.22	412	9.53	242	115	52
10	250	20.00	508	11.02	280	190	86
12	300	21.65	550	12.68	322	280	127
14	350	25.98	660	13.66	347	365	166
16	400	30.00	762	15.55	395	560	254
18	450	32.98	838	16.81	427	685	311
20	500	35.98	914	18.11	460	985	447
22	550	40.00	1016	19.96	507	975	442
24	600	42.99	1092	21.54	547	1690	767
26	650	47.01	1194	22.13	562	1540	699
28	700	49.02	1245	23.43	595	1950	885
30	750	56.02	1423	24.88	632	2985	1343
34	850	60.67	1541	27.24	692	3065	1379
36	900	65.00	1651	28.54	725	3780	1701

Hot Tapping Fitting 600#
Size		L		H		Weight
Inch	DN	Inches	mm	Inches	mm	Lbs	kg
4	100	10.75	273	7.17	182	60	27
6	150	14.02	356	8.94	227	100	45
8	200	16.22	412	10.63	270	160	73
10	250	20.00	508	12.60	320	280	127
12	300	21.65	550	13.86	352	385	175
14	350	25.98	660	14.76	375	540	245
16	400	30.00	762	15.83	402	690	313
18	450	32.98	838	17.13	435	815	370
20	500	35.98	914	19.76	502	1210	549
22	550	40.00	1016	20.94	532	1725	782
24	600	42.99	1092	21.93	557	1895	860
26	650	47.01	1194	25.28	642	2070	932
28	700	49.02	1245	25.39	645	2730	1238
30	750	56.02	1423	27.24	692	3180	1431
34	850	60.67	1541	29.92	760	4640	2088
36	900	65.00	1651	30.59	777	5990	2696
