Product Description

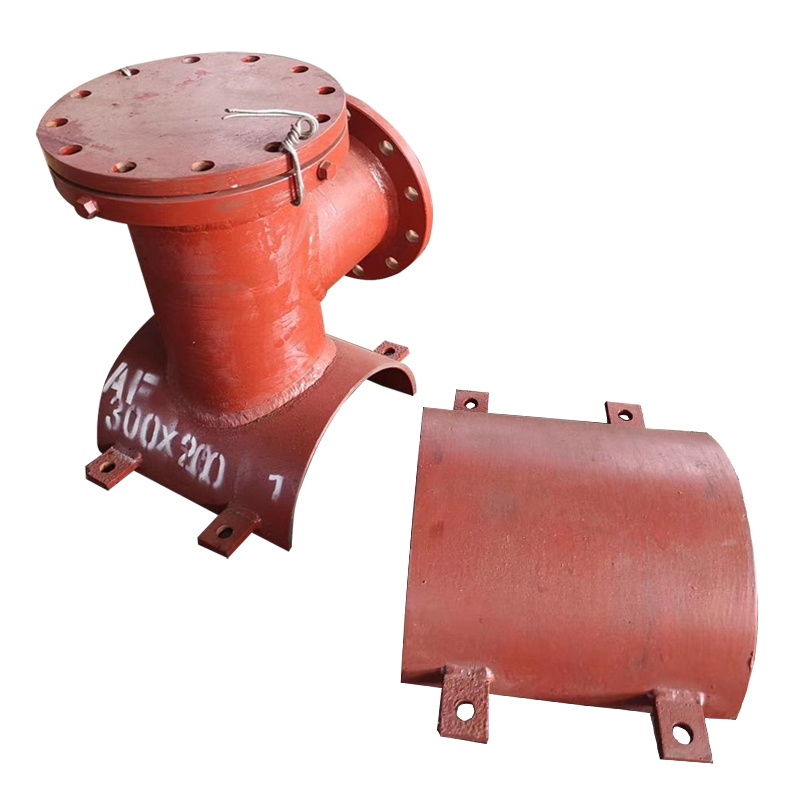

Three Way Tee Fitting are designed as pressure vessels and welded to pipelines where on-charge intervention is needed. Hot Tapping Equipment is connected to these fittings and through them perform hot tap or line stop operation.
Design Data
Design Code: | ASME B31.3/4/8 |
Design Pressure: | ANSI #150, #300, #600, #900 |
Design Temperature: | -20ºC to 80ºC |
Design Factor: | 0.4, 0.5, 0.6, 0.72 |
Flange: | SLIP ON, Serrated /Flat |
Sealing Type | RF or RTJ |
Flange Standard | Ø ≤ 24” ASME B16.5 |
Ø > 24” ASME B16.47 |
Plate : | A860 All Grades – P355 NL1, P460 NL1 as per EN 10.028-3 |
Flanges: | ASTM A105 |
Bolts & Nuts : | ASTM A193 B7/194 2H |
Pipe: | API 5L Gr.B, ASTM A106 Gr.B, E355 as per EN 10.028-3 |
* Lock Sure Flange Secures Completion Plug
* Extruded / Fabricated Sleeves
* Allows Sandwich Valve to be removed after job is complete
Size:* From Ø2” to Ø56”
Type :
* Extruded Fittings
* Welded Fittings
* Mechanical Fittings
* 100% RX on butt welds
* 100% US on the other
Three Way Tee Fitting Dimensions
Three Way Tee Fitting 150# | |||||||
Size | L | H | Weight | ||||
Inch | DN | Inches | mm | Inches | mm | Lbs | kg |
4 | 100 | 11 | 279 | 8 | 203 | 60 | 27 |
6 | 150 | 15 | 381 | 10 | 254 | 101 | 46 |
8 | 200 | 16 | 406 | 11 | 279 | 166 | 75 |
10 | 250 | 20 | 508 | 13 | 330 | 228 | 104 |
12 | 300 | 22 | 559 | 14 | 356 | 340 | 155 |
14 | 350 | 26 | 660 | 15 | 381 | 446 | 203 |
16 | 400 | 30 | 762 | 16 | 406 | 571 | 259 |
18 | 450 | 33 | 838 | 18 | 457 | 658 | 299 |
20 | 500 | 36 | 914 | 21 | 533 | 806 | 366 |
22 | 550 | 40 | 1016 | 22 | 559 | 990 | 450 |
24 | 600 | 43 | 1092 | 23 | 584 | 1225 | 557 |
26 | 650 | 47 | 1194 | 25 | 635 | 1756 | 798 |
28 | 700 | 49 | 1245 | 27 | 686 | 2051 | 932 |
30 | 750 | 52 | 1321 | 29 | 737 | 2468 | 1122 |
32 | 800 | 57 | 1448 | 31 | 787 | 3020 | 1373 |
34 | 850 | 59 | 1499 | 34 | 864 | 3396 | 1544 |
36 | 900 | 61 | 1549 | 36 | 914 | 4095 | 1861 |
Three Way Tee Fitting 300# | |||||||
Size | L | H | Weight | ||||
Inch | DN | Inches | mm | Inches | mm | Lbs | kg |
4 | 100 | 11 | 279 | 9 | 224 | 88 | 40 |
6 | 150 | 15 | 381 | 11 | 274 | 160 | 73 |
8 | 200 | 16 | 406 | 12 | 307 | 254 | 115 |
10 | 250 | 20 | 508 | 14 | 363 | 360 | 164 |
12 | 300 | 22 | 559 | 15 | 391 | 528 | 240 |
14 | 350 | 26 | 660 | 17 | 419 | 695 | 316 |
16 | 400 | 30 | 762 | 18 | 447 | 881 | 400 |
18 | 450 | 33 | 838 | 20 | 503 | 1127 | 512 |
20 | 500 | 36 | 914 | 23 | 587 | 1406 | 639 |
22 | 550 | 40 | 1016 | 24 | 615 | 1707 | 776 |
24 | 600 | 43 | 1092 | 25 | 643 | 2154 | 979 |
26 | 650 | 47 | 1194 | 28 | 699 | 2635 | 1198 |
28 | 700 | 49 | 1245 | 30 | 754 | 3194 | 1452 |
30 | 750 | 52 | 1321 | 32 | 810 | 3776 | 1717 |
32 | 800 | 57 | 1448 | 34 | 866 | 4366 | 1984 |
34 | 850 | 59 | 1499 | 37 | 950 | 5043 | 2292 |
36 | 900 | 61 | 1549 | 40 | 1006 | 5840 | 2655 |
