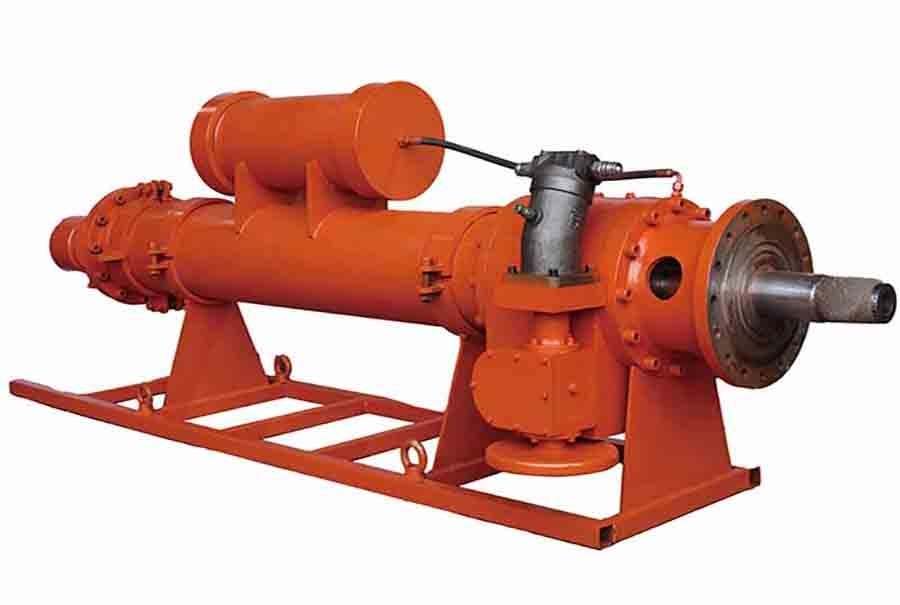

Hydraulic Hot Tapping Machin

Product Description

1.High Pressure Hydraulic Hot Tapping Machine is designed to making connections to pipelines or tanks without service shutdown or interruptions .

2.It is widely used for pipeline emergency response or attach branch connections, valves onto an operating pipeline .

3.The machine is suit for flammable, explosive Crude Oil, Natural Gas, LNG, Chemical, Coal Gas, Urban Water Supply, Heat Supply Pipeline Hot Tap and Line Stop.

Equipment parameters

Model	GW-K100	GW-K200	GW-K300	GW-K500	GW-K800
Hot Tapping Range	2''-6''	4''-8''	GW-K300	16''-48''	40''-120''
Hot Tapping Range	6.4Mpa	4''-8''	6.4Mpa	6.4Mpa	6.4Mpa
Boring Bar Travel	24''	40''	60''	72''	112''
Drive Mode	Hydraulic
Feed Mode	Automatic / Manual
Boring Bar Diameter	30mm	40mm	65mm	100mm	160mm
