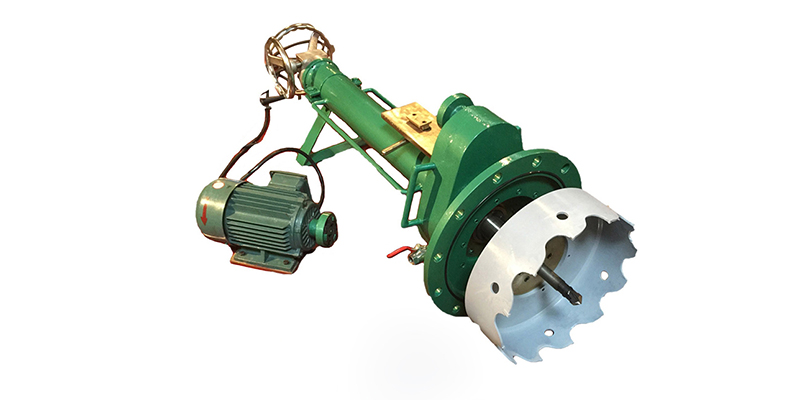

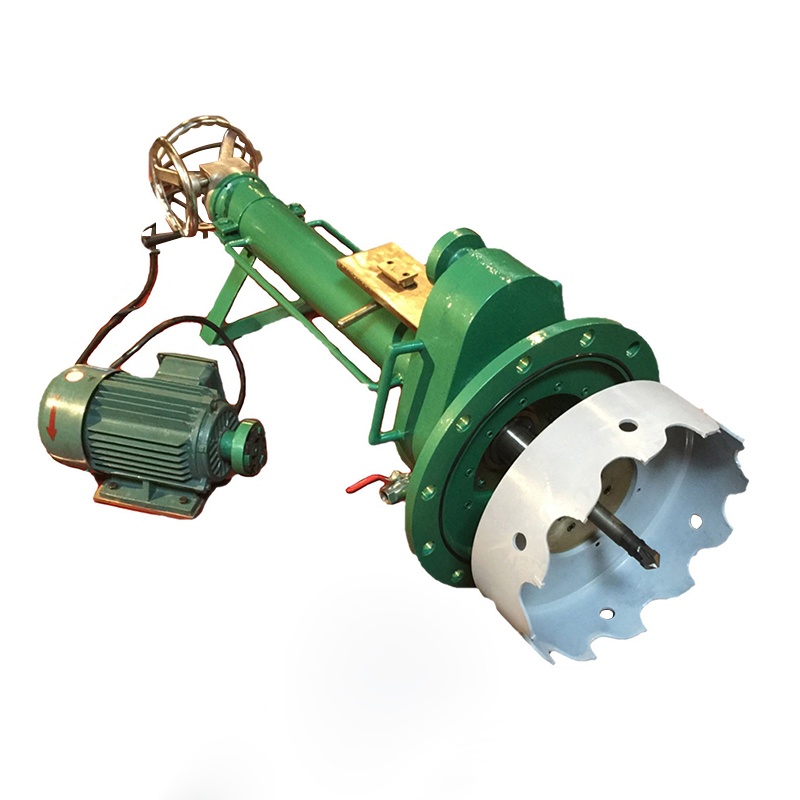

HT400 Model Electric Hot Tapping Machine

Electric Hot Tapping Machine HT400

HT400 Model Hot Tapping Machine can be used for hot tap for branch connnection from mains.

It is suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Concrete Pipe, Plastic Pipe Hot Tapping .
Our Hot Tapping Machines are widely appplied in Water, Oil, Gas, Steam,Chemical Industry .

Specification
* 10-inch through 16-inch (DN250 to DN400) hot taps
* Maxium working pressure: 25 bar at 38℃（100°F）
* Maxium operating temperature: 200℃
* Spindle Transimission: Electric
* Feed Mode: Manual
* Motor: 3 Phase,1.5Kw, 380V OR 3 phase, 2.2 Kw, 380V(PN16/25)
* Working Stroke: 600/800mm
* Spindle Speed: 30r/min
* Connection with Valve: Flange Connection
* Flange Standard: BS PN10/16 ASME#150
* Dimension:1360x460x480mm
* Weight: 85Kgs
*Motor Protection:Overload shutoff automatic
Key Features

List of Size

Model	Range of Hot Tapping Size	Drive Mode	Feed Mode	Feed Volume	Working Stroke	Spindle Speed	Motor Power	Motor Voltage
	mm/inch			mm/r	mm	RPM	Kw	V
HT50	DN25-DN50 3/4''-2''	Manual	Manual	1.5	240/350	/	/	/
HT100	DN50-DN100 2''-4''	Electric	Manual	0.07-0.2	370	53	0.75	220
HT200	DN100-DN200 4''-8''	Electric	Manual	0.07-0.2	500	40	1.5	220
HT200	DN50-DN200 2''-8''	Electric	Manual	0.07-0.2	500	40	1.5	220
HT300	DN100-DN300 4''-12''	Electric	Manual	0.07-0.2	600	40	1.5	220/380
HT400	DN250-DN400 10''-16''	Electric	Manual	0.07-0.15	600/800	30	1.5	380
HT600	DN500-DN600 20''-24''	Electric	Manual/Automatic	0.3	900	30	4	380
HT800	DN500-DN800 20''-32''	Electric	Manual/Automatic	0.3	1000	20	7.5	380
HT1000	DN500-DN1000 20''-40''	Electric	Manual/Automatic	0.3	1250	20	7.5	380
HT1600	DN1000-DN1600 40''-64''	Electric	Manual/Automatic	0.15-4	1450/2000	12	15	380
