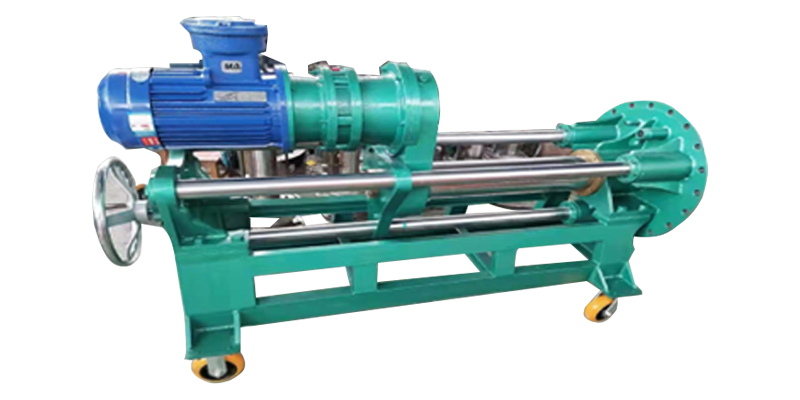

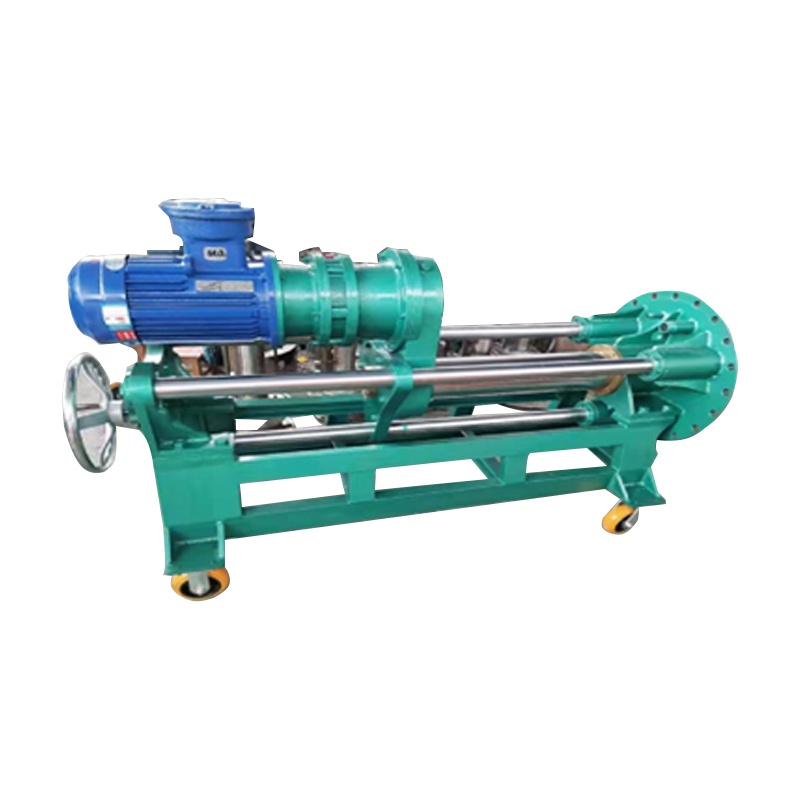

Electric Hot Tapping Machine HT1600
HT1600 Model Hot Tapping Machine can be used for hot tap for branch connnection from mains.
It is suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Concrete Pipe, Plastic Pipe Hot Tapping .Our Hot Tapping Machines are widely appplied in Water, Oil, Gas, Steam,Chemical Industry .
Specification
* 32-inch through 64-inch (DN1000 to DN1600) hot taps
* Maxium working pressure: 25 bar at 38℃（100°F）
* Maxium operating temperature: 200℃
* Spindle Transimission: Electric
* Feed Mode: Manual
* Motor: 3 Phase,15Kw, 380V
* Working Stroke: 1450/2000mm
* Spindle Speed: 12r/min
* Connection with Valve: Flange Connection
* Flange Standard: BS PN10/16 ASME#150
* Dimension:3400x1230x1600mm
* Weight: 1500Kgs
* Motor Protection:Overload shutoff automatic
Key Features
List of Size
| Model | Range of Hot Tapping Size | Drive Mode | Feed Mode | Feed Volume | Working Stroke | Spindle Speed | Motor Power | Motor Voltage |
| mm/inch | mm/r | mm | RPM | Kw | V | |||
| HT50 | DN25-DN50 3/4''-2'' | Manual | Manual | 1.5 | 240/350 | / | / | / |
| HT100 | DN50-DN100 2''-4'' | Electric | Manual | 0.07-0.2 | 370 | 53 | 0.75 | 220 |
| HT200 | DN100-DN200 4''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 |
| HT200 | DN50-DN200 2''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 |
| HT300 | DN100-DN300 4''-12'' | Electric | Manual | 0.07-0.2 | 600 | 40 | 1.5 | 220/380 |
| HT400 | DN250-DN400 10''-16'' | Electric | Manual | 0.07-0.15 | 600/800 | 30 | 1.5 | 380 |
| HT600 | DN500-DN600 20''-24'' | Electric | Manual/Automatic | 0.3 | 900 | 30 | 4 | 380 |
| HT800 | DN500-DN800 20''-32'' | Electric | Manual/Automatic | 0.3 | 1000 | 20 | 7.5 | 380 |
| HT1000 | DN500-DN1000 20''-40'' | Electric | Manual/Automatic | 0.3 | 1250 | 20 | 7.5 | 380 |
| HT1600 | DN1000-DN1600 40''-64'' | Electric | Manual/Automatic | 0.15-4 | 1450/2000 | 12 | 15 | 380 |
