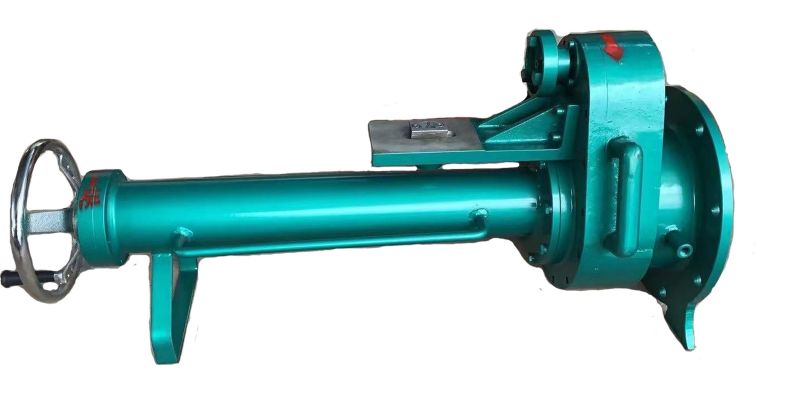

Electrical Hot Tapping Machine

Electrical Hot Tapping Machine

Electrical Hot Tapping Machine

Introduction :
hot tapping machine is designed for making entries into the pipelines under pressure
* hot tapping machine is used to provide a branch off pipeline from existing main pipe
* suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Plastic Pipe, AC pipe and etc
* suit for water, oil, gas, heat lines with the operation pressure within 2.5 Mpa

Advantages :
* No disruption to the system operation
* Removable motor, easy handling
* Explosion Proof Motor for pipeline with flammable medium such as crude oil, natural gas
* this machine in good sealing with the gasket of interface between the main spindle and driving spindle

Technical Specification :
Model HT200
Hot Tapping Range DN50,80,100,150, 200mm
Working Pressure PN10, 16, 25 bar
Stroke 400mm
Spindle Speed 40 r/min
Rated Power 1.5 Kw
Rated Voltage 220V
Feeding Volume 0.07-0.2 mm/r
Hot Tapping Time 15-30 min
