ANQING GREAT WALL PIPELINE CO.,LTD/ANQING HOT TAPPING PIPELINE CO LTD

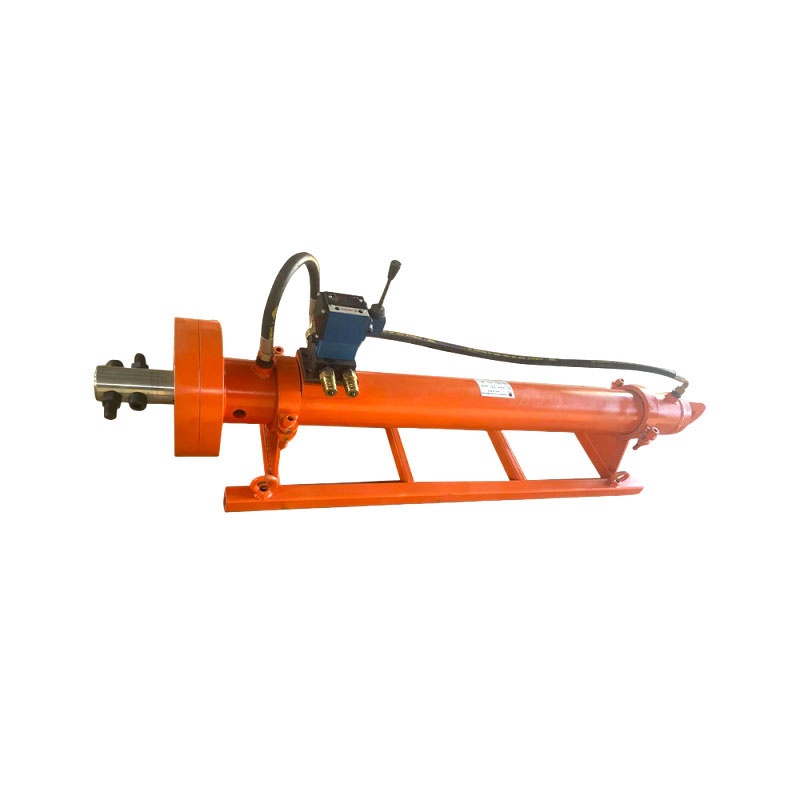

Line Stop Machine is used to send Line Stop Heads into pipeline to stop the flow in the line
Specification:
| Model | FD-100 | FD-200 | FD-400 | FD-800 | FD-1200 |
| Stopple Range | 50-100mm | 150-200mm | 200-450mm | 450-1400mm | 1600-2800mm |
| 2''-4'' | 6''-8'' | 8''-18'' | 18''-56'' | 64''-114'' | |
| Design Pressure | 10Mpa | 10Mpa | 10Mpa | 10Mpa | 10Mpa |
| Drive Mode | Hydraulic / Manual | ||||
| Feed Mode | Automatic / Manual | ||||
| Spindle Diameter | 40mm | 55mm | 90mm | 140mm | 200mm |
| Spindle Travel | 640mm | 1300mm | 1800mm | 2800mm | 5500mm |
| 26'' | 52'' | 72'' | 112'' | 220'' | |
| Flange Connection | ASME Standard | ||||
| Working Temperature | -20 ℃ ~ 200℃ | ||||
| Pipe Medium | Oil, Gas, Water and etc | ||||
