flange repair clamp

Products

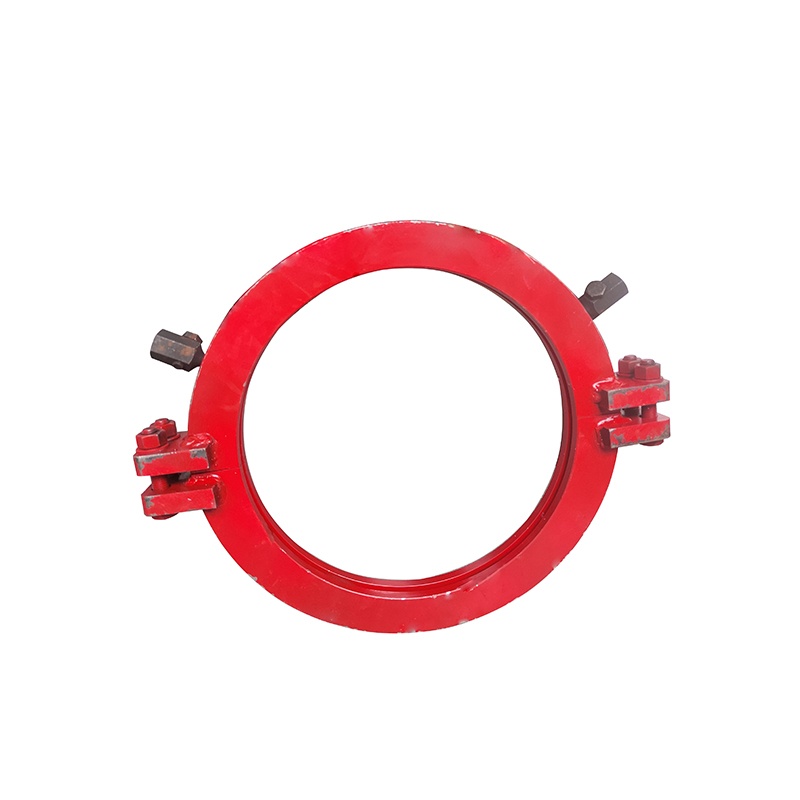

flange repair clamp

Product No.:20247514117

  • Details

Product Description

Flange Repair Clamps is designed to act fast by sealing a leaking asket on the outside diameter of the flange set.This can be done with the pipeline still in service reducing costly shut downs .Once Flange Repair clamps is torqued to the correct specifications, the leak will follow path of least resistance to the flange bolts.We solve this issue by injecting sealant through the injection ports to fill the gars around the flange bolts.

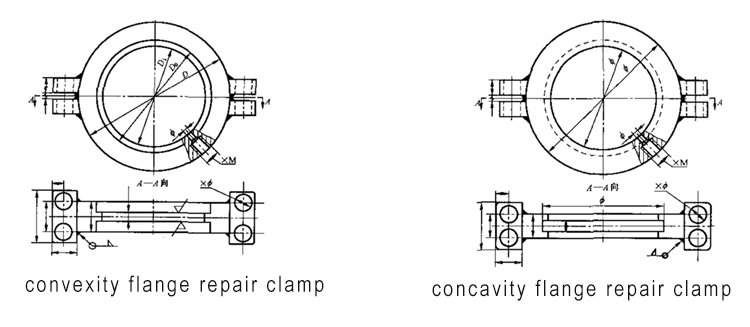

1.If the gap between two flanges is between 3mm to 5mm, we choose cnvexity flange repair clamp

2.If the gap between two flanges is less than 2mm,we choose concavit/flange repair clamp

List of Sizes


S/N SIZE PRESSURE
mm inch
1 DN15 1/2 #150/#300#/600/#900
2 DN20 3/4 #150/#300#/600/#900
3 DN25 1 #150/#300#/600/#900
4 DN32 1 1/4 #150/#300#/600/#900
5 DN40 1 1/2 #150/#300#/600/#900
6 DN50 2 #150/#300#/600/#900
7 DN65 2 1/2 #150/#300#/600/#900
8 DN80 3 #150/#300#/600/#900
9 DN100 4 #150/#300#/600/#900
10 DN125 5 #150/#300#/600/#900
11 DN150 6 #150/#300#/600/#900
12 DN200 8 #150/#300#/600/#900
13 DN250 10 #150/#300#/600/#900
14 DN300 12 #150/#300#/600/#900
15 DN350 14 #150/#300#/600/#900
16 DN400 16 #150/#300#/600/#900
17 DN450 18 #150/#300#/600/#900
18 DN500 20 #150/#300#/600/#900
19 DN600 24 #150/#300#/600/#900
