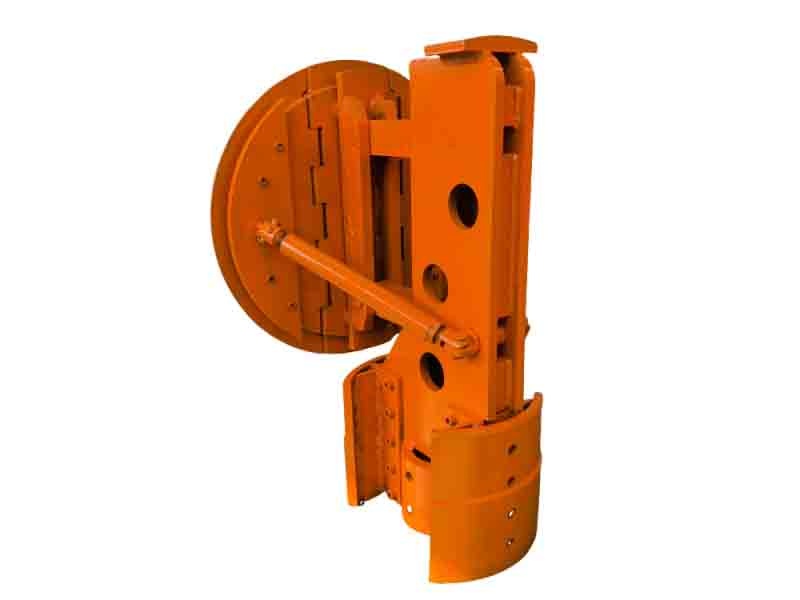

Folding Line Stop Sizes
S/N | Hot Tapping Size | Folding Line Stop Size | Max Operation Pressure | ||
inch | mm | inch | mm | bar | |
1 | 12 | 300 | 18 | 450 | 6 |
2 | 20 | 500 | 6 | ||
3 | 16 | 400 | 24 | 600 | 6 |
4 | 26 | 650 | 6 | ||
5 | 28 | 700 | 6 | ||
6 | 24 | 600 | 32 | 800 | 6 |
7 | 36 | 900 | 6 | ||
8 | 36 | 900 | 40 | 1000 | 6 |
9 | 44 | 1100 | 6 | ||
10 | 48 | 1200 | 6 | ||
11 | 52 | 1300 | 6 | ||
12 | 56 | 1400 | 6 | ||
13 | 48 | 1200 | 60 | 1500 | 4 |
14 | 64 | 1600 | 4 | ||
15 | 68 | 1700 | 4 | ||
16 | 72 | 1800 | 4 | ||
17 | 56 | 1400 | 80 | 2000 | 2 |
18 | 88 | 2200 | 2 | ||
19 | 96 | 2400 | 2 | ||
20 | 104 | 2600 | 2 | ||
21 | 64 | 1600 | 112 | 2800 | 2 |
24 | 88 | 2200 | 160 | 4000 | 2 |
